Non Contact Optical Shaft Measuring Machine

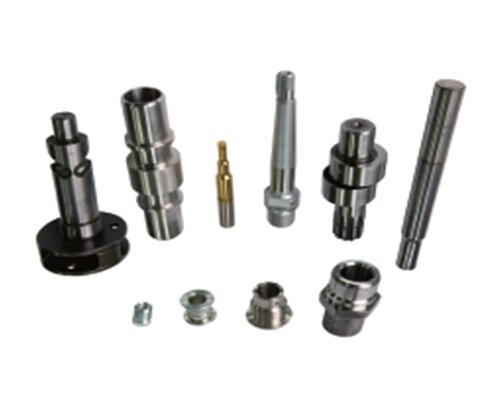

Measurement Applications
- Parts Manufacturing of Automobile, Motorcycle, Bicycle
- Power Tool Manufacturing
- Motor Spindles Manufacturing
- Tool Manufacturing
- ICT Components Manufacturing
- Medical Equipment Manufacturing
| TYPE | MODEL | MEASURING LENGTH | REPEATABILITY | MEASUREMENT UNCERTAINTY | SIZE | WEIGHT |
|---|---|---|---|---|---|---|
| FLASH | TIMI40-10F | 100mm | 0.3 microns | ±(2+0.01D)μm D in ‘mm’ | 715 x 500 x 450mm | 40 Kgs |
| AUTOMATIC | TIMI40-20A | 200mm | 0.3 microns | ±(2+0.01D)μm D in ‘mm’ | 750 x 600 x 850mm | 110 Kgs |
| AUTOMATIC | TIMI40-30A | 300mm | 0.3 microns | ±(2+0.01D)μm D in ‘mm’ | 850 x 630 x 800mm | 200 Kgs |
| PRECISION | TIMI40-30P | 300mm | 0.3 microns | ±(2+0.01D)μm D in ‘mm’ | 880 x 720 x 1800mm | 250 Kgs |
